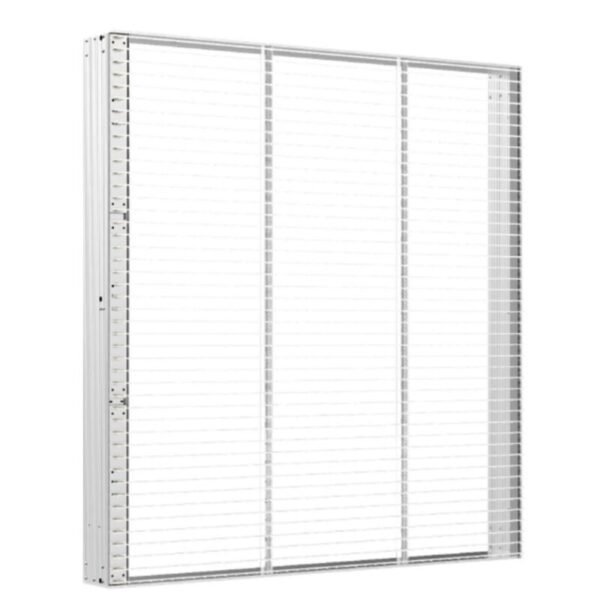

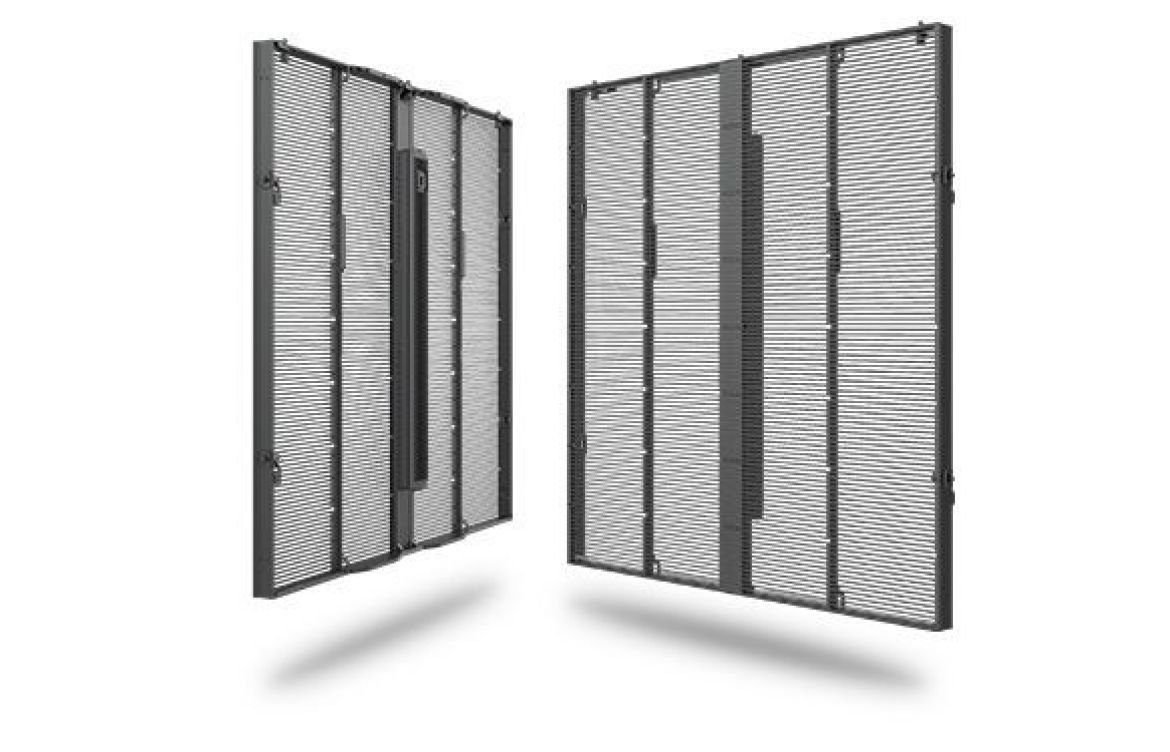

Transparent LED Display – Large Panel Design (8.9mm Pixel Pitch)

Transparent LED displays in large panel designs offer high visibility for content while maintaining see-through transparency, making them ideal for storefronts, exhibitions, and architectural applications.

Large-frame indoor transparent LED panels feature a transparency range of 35% to 62%, delivering exceptional performance in indoor settings with high brightness and wide viewing angles. The compact LED and PCB design further enhance transparency for a more seamless visual experience.

Application Fields

Touring Productions
Live Concerts
Special Events

Pixel Pitch	8.9mm
LED Type	SMD 1515 White
Brightness	3500 nits
Panel Size (mm)	1000 x 1000 x 67 mm
Panel Size (inch)	39.4” x 39.4” x 2.6”
Resolution	112 x 112
Weight	9.6 kg \| 21.16 lbs
Max / Avg Power	460W / 230W
Cabinet Density	1570 / 720
Transparency	62%
Maintenance	Front
Curvature	Concave 10° ~ Convex 10°
Horizontal Viewing Angle	140°
Vertical Viewing Angle	160°
Refresh Rate	3840Hz
Gray Scale	14-bit
Scan Mode	1/4
Operating Temperature / Humidity	-20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH
Storage Temperature / Humidity	-40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH
IP Rating	IP40
Certifications	CE, ETL, FCC, SAA
Max Panels per Power Supply	15 panels
Panels per Controller	6 panels
